Name: Fast Speed Non Standard Heavy Duty AGV Automatic Guided Vehicle QR Code Guidance
Brand: Shenzhen Casun Intelligent Robot Co., Ltd.
Price: Negotiable USD
Availability: InStock

Home Products Non standard Heavy Duty AGV

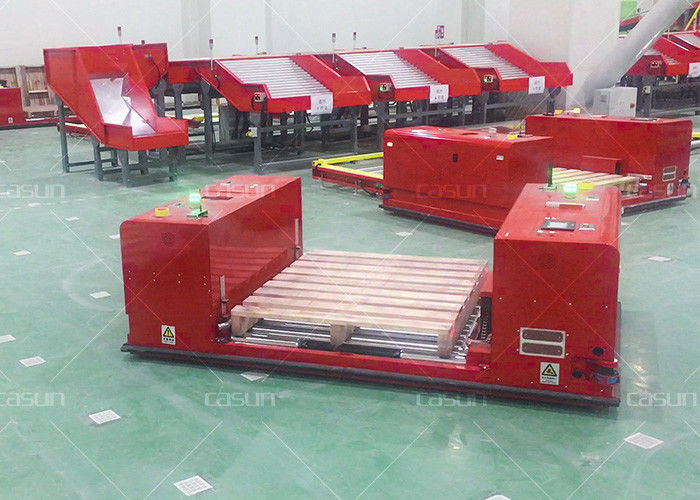

Fast Speed Non Standard Heavy Duty AGV Automatic Guided Vehicle QR Code Guidance

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Guidance:	QR Code Inertial AGV	Direction:	All Direction
Battery:	Lithium	Load Capacity:	500-1500kg
Color:	Red Or Customizable	Driving:	Steering Driving
Highlight:	agv logistic , small agv

Agv Solution Heavy Duty AGV Auto Charging Automatic Guided Vehicle

1. Introduction

Omnidirectional QR code inertial AGV is a heavy-duty AGV developed by CASUN. It uses inertial navigation control, QR code label to assist correction, no need for magnetic strip, easy project implementation and small space needed for operation. It uses a steering wheel drive to achieve forward, reverse, lateral movement, and in-situ rotation. With fast speed, 24-hour uninterrupted work and real-time data transmission monitoring, it meets fast-paced production requirements. It can carry a maximum of 2T weight to meet the needs of different customers. Widely used in warehousing and logistics, automotive, home appliances, electronics, electrical appliances, food and many other industries.

Fast Speed Non Standard Heavy Duty AGV Automatic Guided Vehicle QR Code Guidance

2. Specification

Model	Custom type
Dimensions	L2277W1360H695(mm)
Load capacity	2000kg
Minimum turning radius	0,360°driving
Guidance	Inertial navigation and QR code correction
Travel Direction	forward and backward, rotate 360° in place, branch
Travel speed	0-65m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF or Wifi
Driving mode	Two-wheel differential drive
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Platform type
Charging method	automatic charging
Battery	lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
Safety induction range	Front obstacle sensor+mechanical bumper sensor

3. Appliation

Fast Speed Non Standard Heavy Duty AGV Automatic Guided Vehicle QR Code Guidance
