Name: Long Life Time Laser Guided Roller Conveyor AGV Robot WIFI Communication
Brand: Shenzhen Casun Intelligent Robot Co., Ltd.
Price: Negotiable USD
Availability: InStock

Home Products Laser Guided Roller Conveyor AGV

Long Life Time Laser Guided Roller Conveyor AGV Robot WIFI Communication

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Navigation:	Laser	Travel Speed:	0-35m/min(Or Customize)
Accuracy:	±10mm	Alarm:	Sound And Visual
Battery:	Lithium	Payload:	2T
Highlight:	laser guided vehicles warehouse , laser guided agv

Laser Navigation Laser Guided AGV Auto Charging Industrial Mobile Robot

1. Product Description:

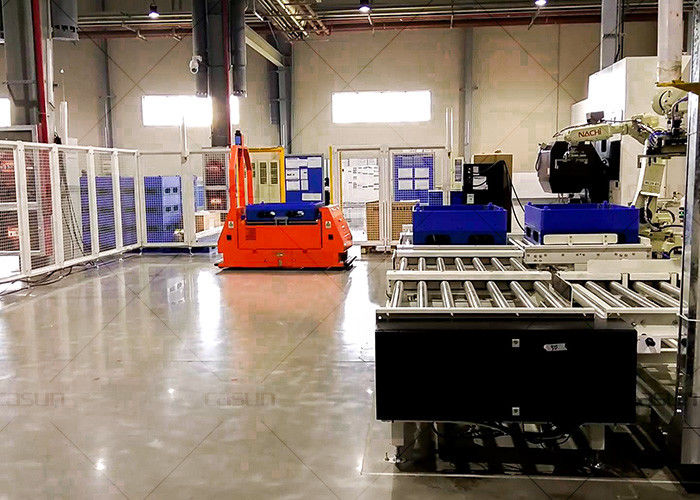

It is through laser positioning technology, no need other positioning facilities on the ground, no need to lay magnetic strips; the driving path is flexible and changeable, and the driving route can be changed only by computer, which is widely used, and can be applied to the transportation of warehouse pallets, and production work environment which needs to be automatically pick up and down the material, etc.

2. Application:

Widely used for intralogistics solution for loading and uploading materials.

3. Specifications:

Product name	Laser Guiding Roller Platform AGV
Model	/
Dimensions	Customized type
Load capacity	500kg/1000kg(Or customizing)
Minimum turning radius	min 750mm
Guidance	laser guidance
Travel Direction	Forward, backward, turn left and right & branch
Travel speed	0-75m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	Wifi
Driving mode	Steering wheel driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Roll platform type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
