Name: WMS System Omni Directional Roller Conveyor AGV Robot With Roller Platform
Brand: Shenzhen Casun Intelligent Robot Co., Ltd.
SKU: BFQD1800V2
Price: Negotiable USD
Availability: InStock

Home Products Omni Directional Roller Conveyor AGV

WMS System Omni Directional Roller Conveyor AGV Robot With Roller Platform

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Model Number:	BFQD1800V2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Model:	BFQD1800V2	Dimensions:	L1800W680H950mm Or Customizable
Load Capacity:	200kg	Guidance:	Magnetic Guidance
Travel Speed:	0-35m/min(Or Customizing)	Guiding Accuracy:	±10mm
Minimum Turning Radius:	0, Omni-directional Driving	Stopping Accuracy:	±10mm
Driving Mode:	Steering Drive	Ramp:	≤2°
Type:	Platform Type, Omni-directional AGV	Charging Method:	Manual Charging / Automatic Charging
Battery:	Lead Acid Battery / Lithium Battery	Life Time:	≥10 Years
Highlight:	automated guided vehicle robot , agv automated guided vehicles

Roller Platform Autonomous AGV Track Navigaction Omni Direction Driverless Robots for WMS System

1.Product Description:

Roller platform type 360 degree turning AGV (steering wheel drive) adopts a hybrid guidance technology (hardware with magnetic guidance+software with laser guidance ) which developed by our own company . Can spin around 360 degrees and walk with quad motion , can be used flexibly in narrow channels. The platform roller on AGV delivers materials and docks with rollers beside the production line seamlessly. It’s a high-end intelligent AGV product mainly used at the site with the complex scheduling system.

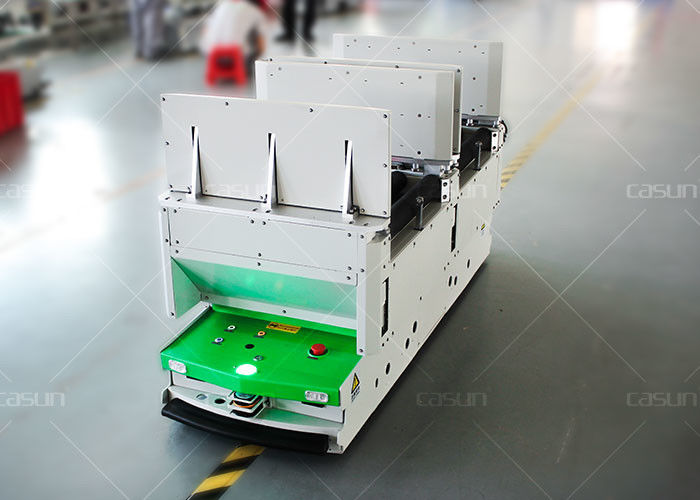

WMS System Omni Directional Roller Conveyor AGV Robot With Roller Platform

2. Application:

Widely used for intralogistics solution for loading and uploading materials.

3.Specifications:

Product name	Roller Platform Autonomous AGV Track Navigaction Omni Direction Driverless Robots for WMS System
Model	BFQD1800V2
Dimensions	L1800W680H950mm or customizable
Load capacity	200kg
Minimum turning radius	0, Omni-directional driving
Guidance	Magnetic guidance
Travel Direction	360°Omni-directional driving
Travel speed	0-35m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Platform type, omni-directional AGV
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
