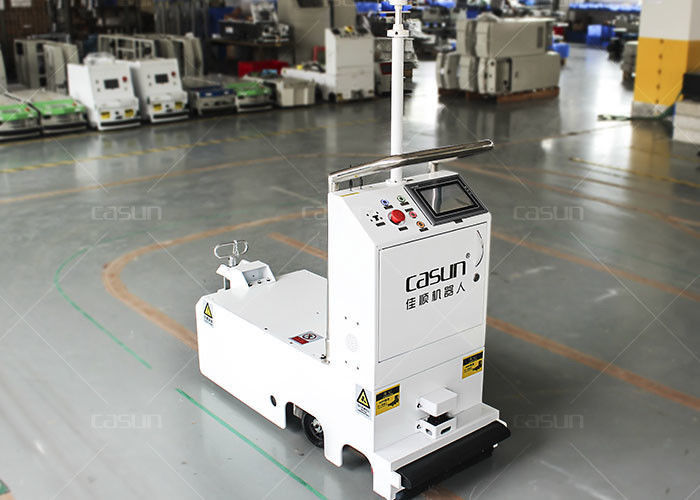

Traction Unidirectional Tugger AGV Towing Vehicle With Laser Obstacle Sensor

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Model Number:	QY1250V1

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Name:	Single Way Tugger Type AGV (L Type)	Model:	QY1250V1
Dimensions:	L1250xW450xH890(mm)	Load Capacity:	500Kg/1000kg
Guidance:	Magnetic Guidance	Minimum Turning Radius:	Min 600mm
Travel Direction:	Forward, Turn Left And Right, Branch	Stopping Accurac:	±10mm
Communication:	RF / Wifi	Driving Mode:	Differential Driving
Power:	DC24V	Ramp:	≤2°
Charging Method:	Manual Charging / Automatic Charging	Battery:	Lead Acid Battery / Lithium Battery
Life Time:	≥10 Years	Alarm:	Sound And Visual
Safety Features:	Front Obstacle Sensor+mechanical Bumper Sensor
Highlight:	agv towing vehicle , autonomous mobile robots

Traction Automatic Guided Vehicle Magnetic Navigation Single Way Laser Obstacle Sensor for Packing Industry

1. Product Description:

One-way tugger type AGV(L- type) can draw skip using the rear device and load the pallet, rack, workbin,etc . on the back at the same time. AGV draw the skip to designated spot through the guidance of magnetic stripe and reading the landmark’s instruction, then AGV drop-off the skip automatically. It can draw a couple of skips at a time and have the function of multi-site stopping.

2. Application:

Widely used for intralogistics solution for loading and uploading materials.

3. Typical Cases:

Floor-stepped over project ( into and out of the elevator automatically ) in Midea Group
AGV project in Wuyang Honda Corporation
AGV project in Gree Group ( Wuhan )

Traction Unidirectional Tugger AGV Towing Vehicle With Laser Obstacle Sensor

4. Specifications:

Product name	Traction Automatic Guided Vehicle Magnetic Navigation Single Way Laser Obstacle Sensor for Packing Industry (L Type)
Model	QY1250V1
Dimensions	L1250xW450xH890(mm)
Load capacity	500Kg/1000kg
Minimum turning radius	min 600mm
Guidance	Magnetic guidance
Travel Direction	Forward, turn left and right, branch
Travel speed	0-45m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tugger type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm

5. Advantages:

One AGV transport more than 1 racks
Communicate with elevator automatically

Traction Unidirectional Tugger AGV Towing Vehicle With Laser Obstacle Sensor
