Name: Durable AGV Auto Guided Vehicle , AGV Magnetic Tape One Way Tunnel Tractor Type
Brand: Shenzhen Casun Intelligent Robot Co., Ltd.
SKU: QF1400V2
Price: Negotiable USD
Availability: InStock

Home Products Unidirectional Tunnel AGV

Durable AGV Auto Guided Vehicle , AGV Magnetic Tape One Way Tunnel Tractor Type

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Certification:	CE
Model Number:	QF1400V2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

AGV:	One-way Tunnel Tractor Type Agv Magnetic Tape Guidance For Automotive Industry	Model:	QF1400V2
Guiding Accuracy:	±10mm	Travel Speed:	0-45m/min(Or Customizing)
Load Capacity:	500kg - 1000kg	Charging Method:	Automatic Or Manual
Life Time:	> 10 Years	Used For:	Automotive Industry & Electronic Industry
Highlight:	agv auto guided vehicle , agv auto guided vehicle

One-way Tunnel Tractor Type Agv Magnetic Tape Guidance for Automotive Industry

1. Product Description:

The one-way tunnel AGV lurks under the trolley and uses the tow bar to automatically lift, hook or drop the trolley. Compact structure and flexible running, it is widely used in many industries such as automobiles, home appliances, electrical appliances and electronics.

Durable AGV Auto Guided Vehicle , AGV Magnetic Tape One Way Tunnel Tractor Type

2. Application:

Widely used for intralogistics solution for loading and uploading materials in Automotive Industry, Electronic Industry, etc.

3. Specifications:

Product name	One-way Tunnel Tractor Type Agv Magnetic Tape Guidance for Automotive Industry
Model	QF1400V2
Dimensions	L1400W420H290(mm)
Load capacity	500Kg-1000kg
Minimum turning radius	min 600mm
Guidance	Magnetic guidance
Travel Direction	Forward, turn left and right, branch
Travel speed	0-45m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm

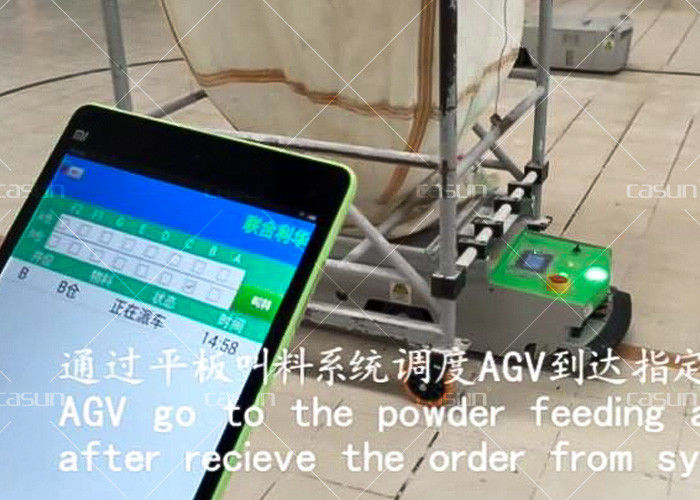

4. Photo:

Durable AGV Auto Guided Vehicle , AGV Magnetic Tape One Way Tunnel Tractor Type
